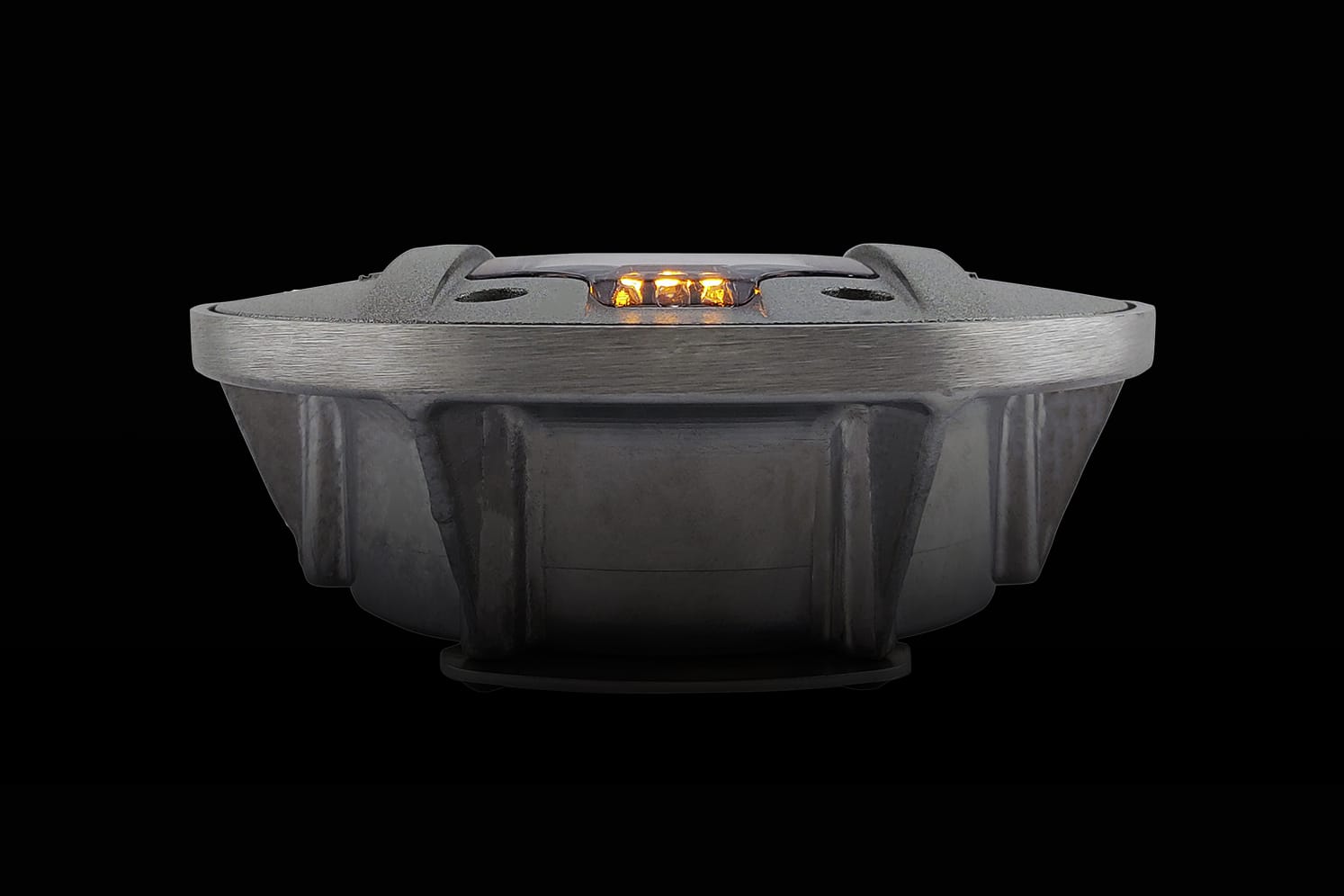

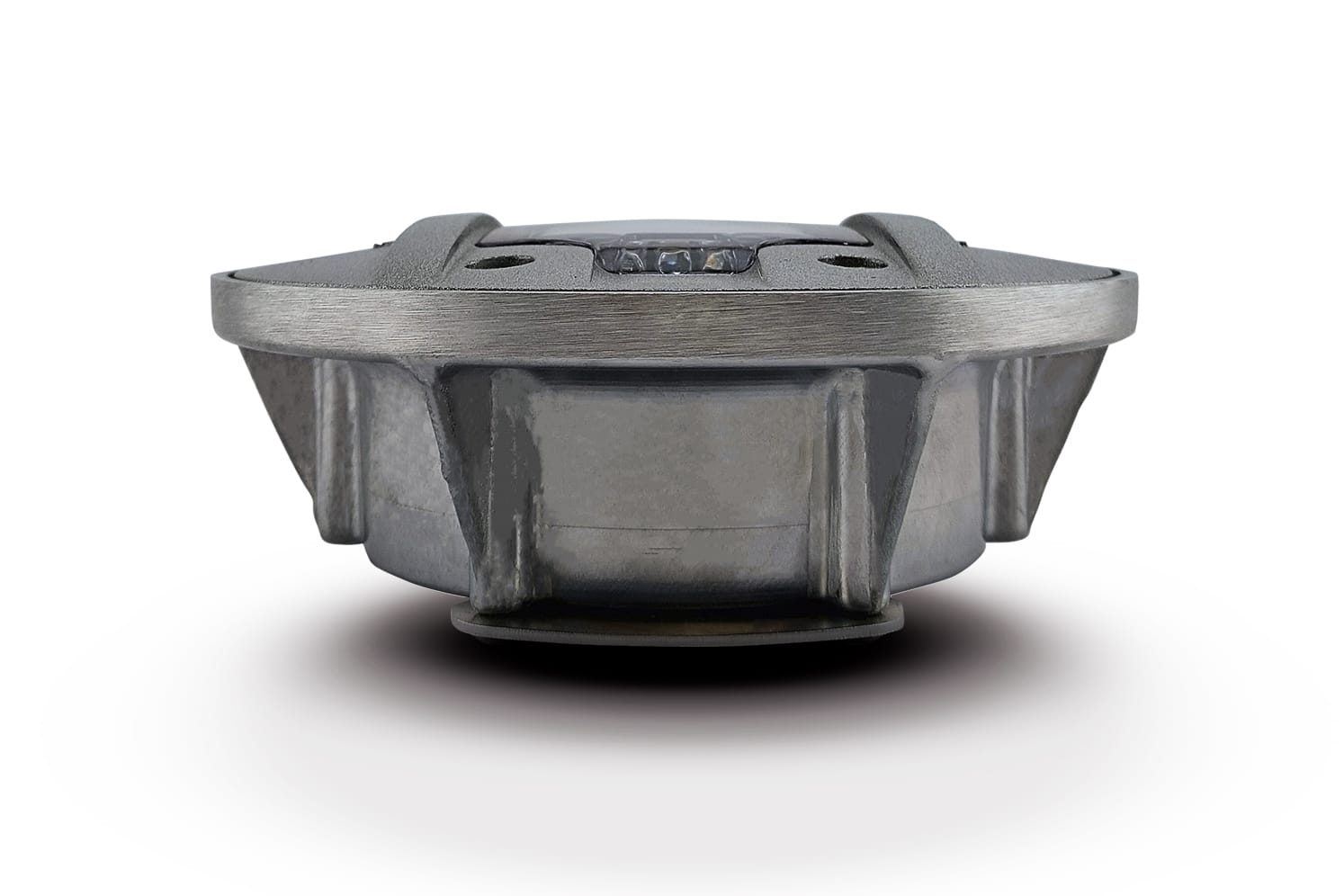

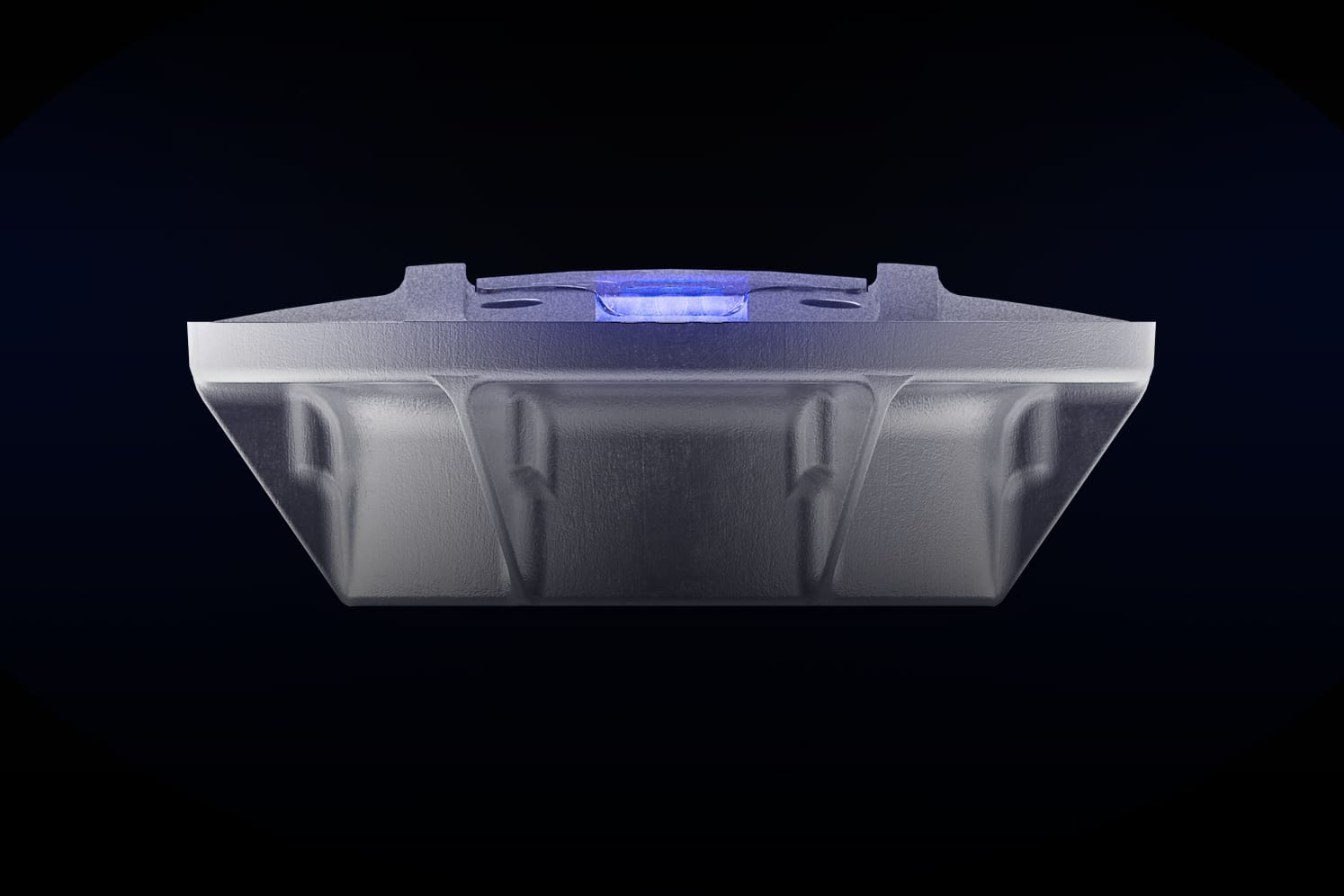

Latest generation GPS solar road stud.
Thanks to its integrated GPS technology, the ECO-160 A (ALU) flush-mounted model enables all the solar road studs on the same site to flash synchronously.

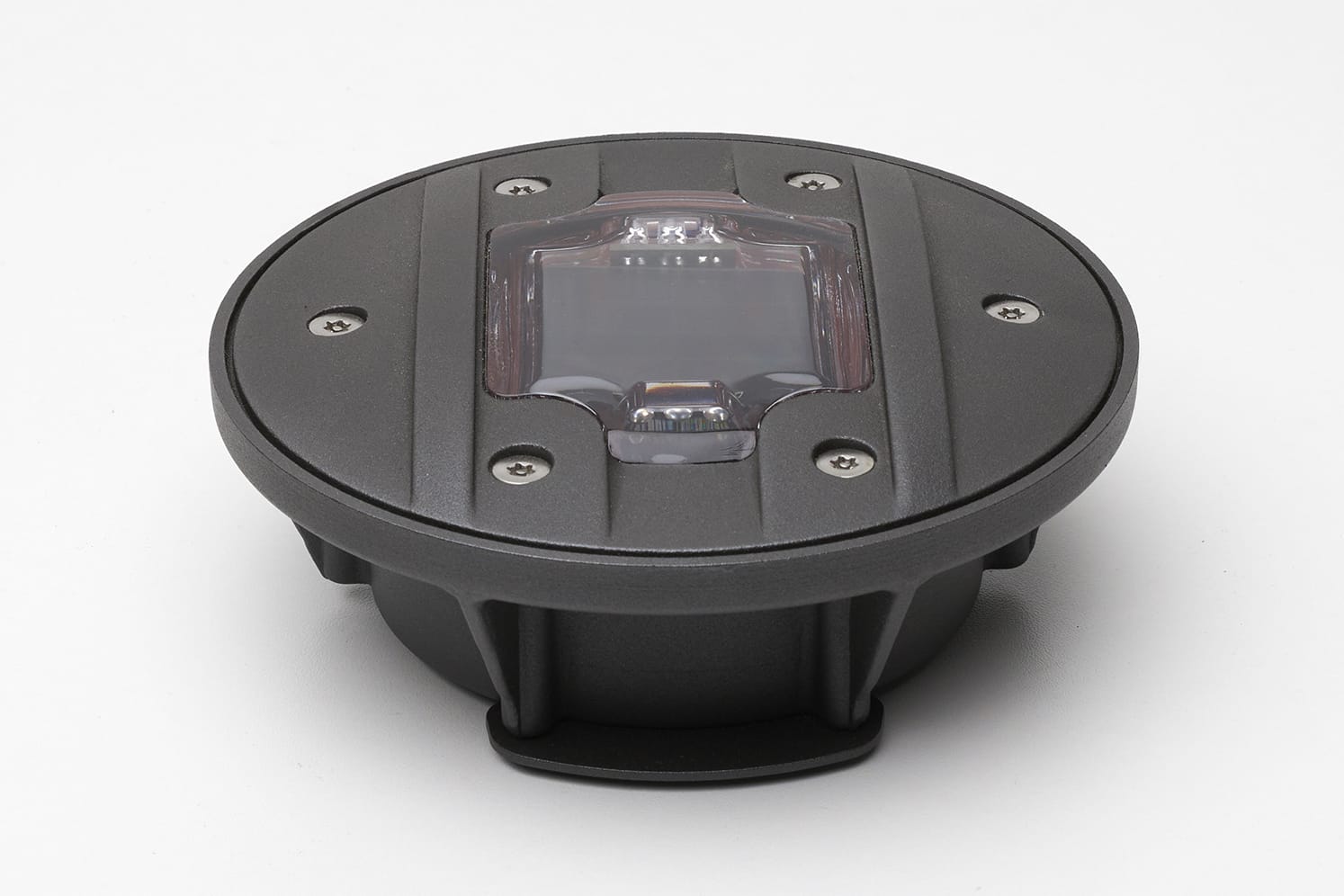

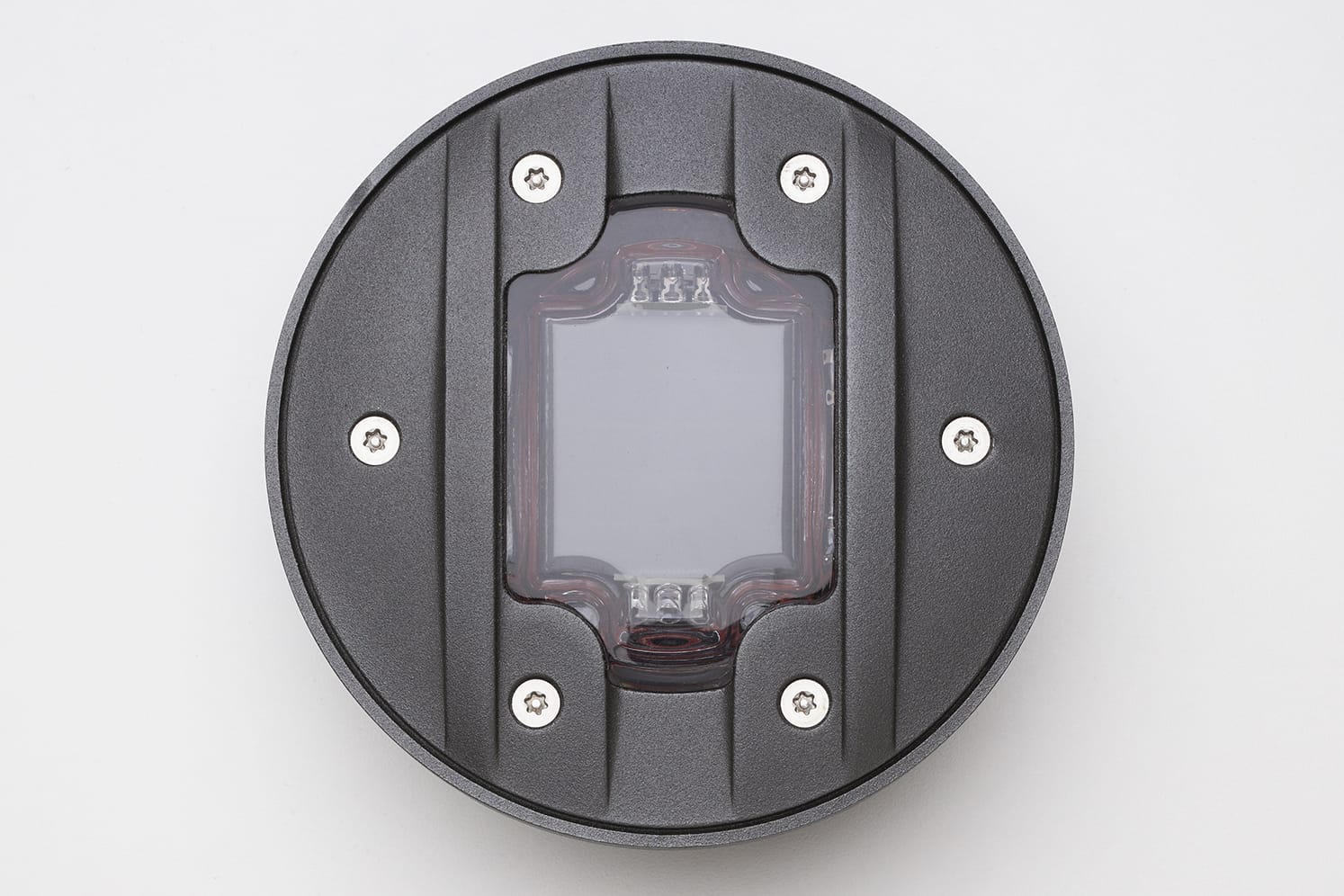

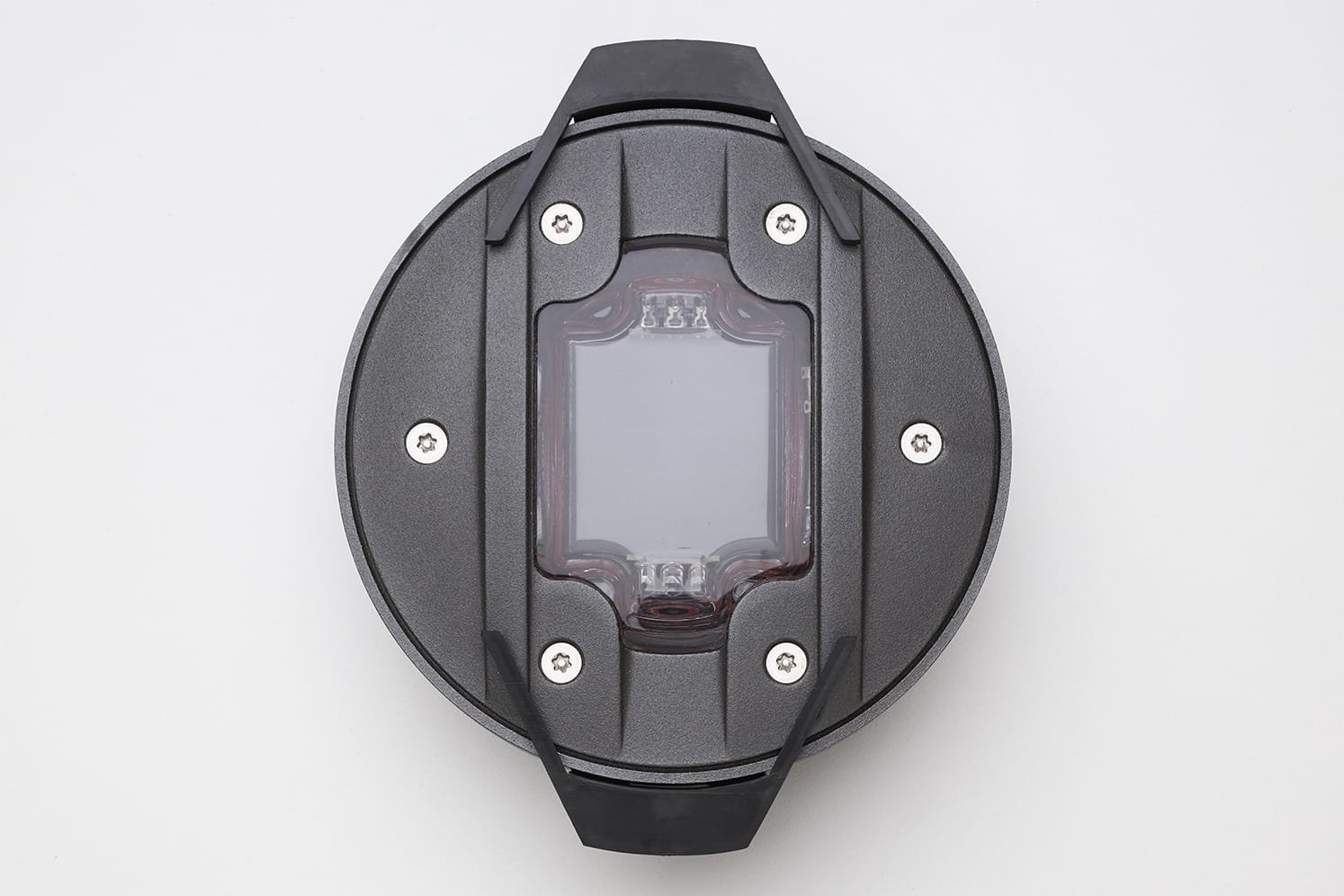

Exclusive design with 2 protective hoops along the solar module. No protruding ends. Easy maintenance. Customised aluminium cover (various finishes available on request).

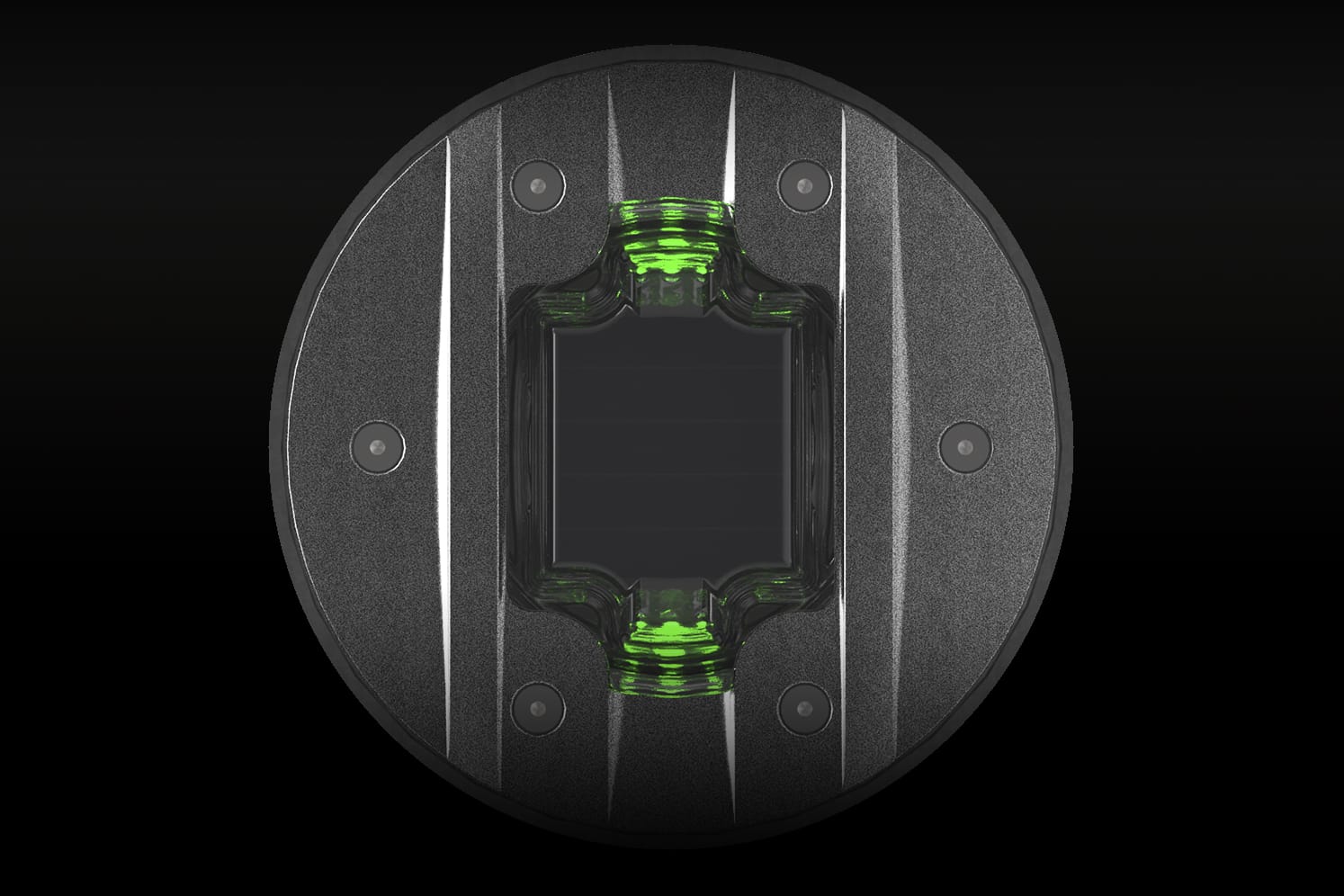

Curved optical module in front of the LEDs for dirt evacuation and visibility.
Applications
Car parks, Cycle paths, Eco-districts, Pedestrian crossings, Roads / Expressways, Roundabouts
Resistance
Standards
LED Colors
Beaconing
1 LED, 2 LED, 3 LED, 4 LED, 5 LED, 6 LED, Constant, Synchronized blinking
Customization
Polished cap, Unpolished cap, Aluminium cap, Anodised cap, Powder coated cap (RAL available)
Recycling
Certifications
TECHNICAL CHARACTERISTICS
Dimensions and weight
Upper diameter: 160 mm.
Total height: 57 mm.
Installation depth: 47 mm.
Height above roadway: 0 mm at each end / 10 mm in the centre.
Weight: approximately 1,1 Kg.
Materials
Aluminium (cover + tank), Polycarbonate (optical module), Silicon (photovoltaic module),
Recycling managed by ECOSYSTEM.
Energy storage
1. Condenser.
2. Ni-Mh accumulator. (Mandatory for GPS synchronised flashing).
Maintenance
Replacement of the solar LED module by the 6 screws of the cover.
Working temperature range
-30°C to +85°C.
Protection indices
IP 68 (watertightness).
IK 10 (impact resistance).
Pressure resistance
Suitable for the passage of 40-tonne trucks.
LIGHTING CHARACTERISTICS
Unidirectional or bidirectional beaconing, 1 or 3 LEDs per side. Fixed or flashing mode (2.5 flashes / second). GPS option for synchronising flashing between studs and without any wiring (1 flash per second ±10%).

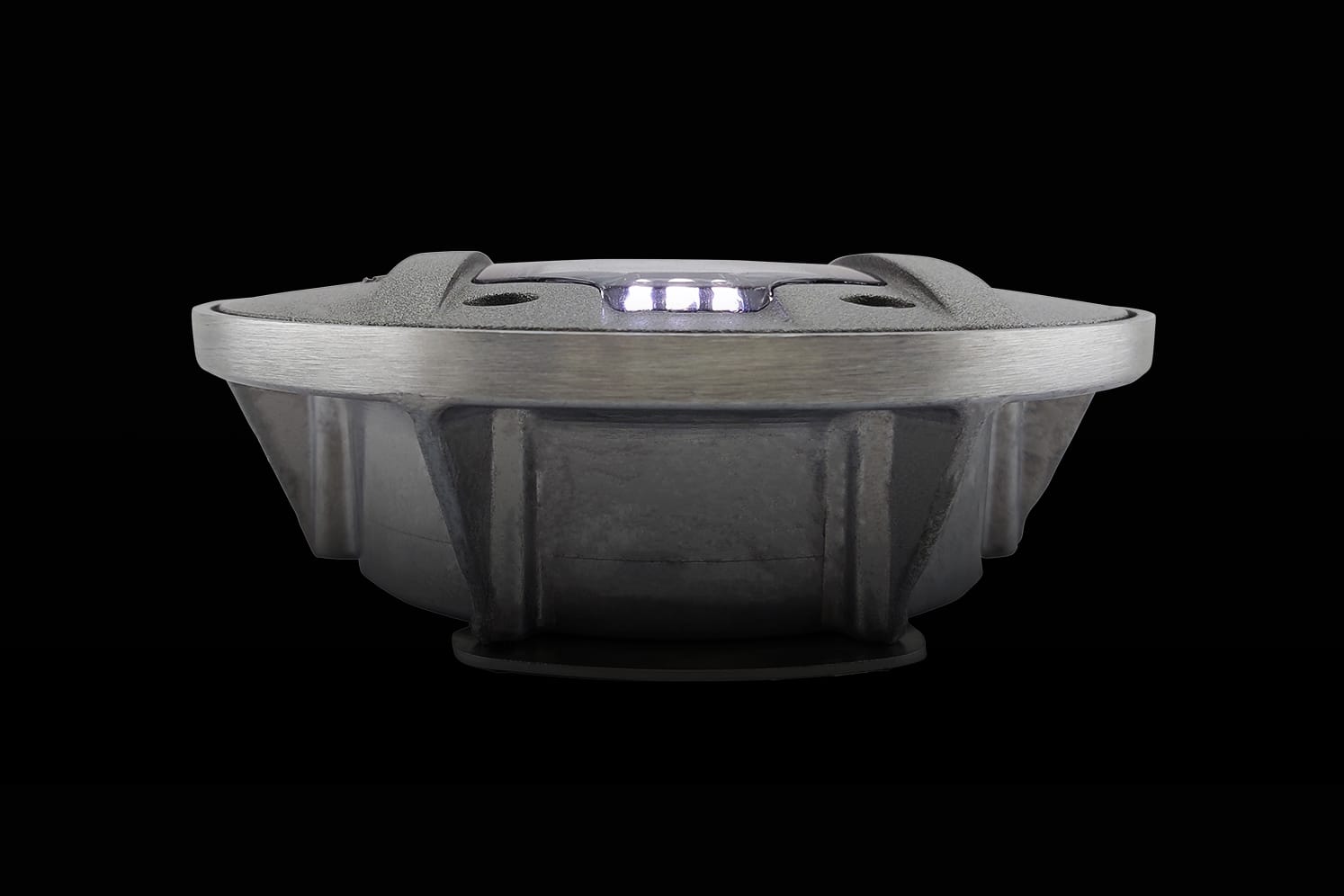

LED colours: white 2700K, white 3000K, white 4000K, white 6500K, blue, green, red, amber.
Installation
1 – After deciding where the studs are to be installed, drill a hole with a minimum diameter of 170 mm and 100 mm deep.
2 – Carefully brush and clean the hole to remove any dust and traces of damp that would affect the efficiency of the adhesive.
3 – Pour the appropriate bonding adhesive into the hole and insert the stud into the adhesive. Use a mallet to position the stud flush with the ground surface. Make sure the LEDs are facing the right way and are parallel to the ground. Immediately remove any residual adhesive from around the stud. If the stud is installed on a tarred concrete support, we recommend using Sikadur 30 two part epoxy adhesive. On a wooden support, we recommend using less rigid adhesives (Please contact us for further information).
4 – Place a weight on the stud until the adhesive has set (refer to the instructions).
Remark: make sure to keep the module and LEDs clean and protect them throughout these operations.
Failure to comply with these instructions may lead to the guarantee being suspended.
Lifespan and warranty
BATTERY
a. Condenser: Average lifespan more than 10 years. 2-year warranty*
b. Ni-Mh accumulator: Average lifespan more than 7 years. 2-year warranty*
Easy maintenance with the 6 screws of the aluminium cover without unsealing the built-in tank.
* The warranty applies in the event of the permanent cessation of the autonomous lighting system within the framework of normal use and installation in accordance with our recommendations. It consists of replacing the faulty element with an identical or equivalent item, subject to return to ECO-INNOV for analysis. On-site intervention costs are not included. Mechanical damage is not covered.
For optimal operation, we recommended to install our solar equipment on sites with good light exposure.
