ECO-843
Request quotation

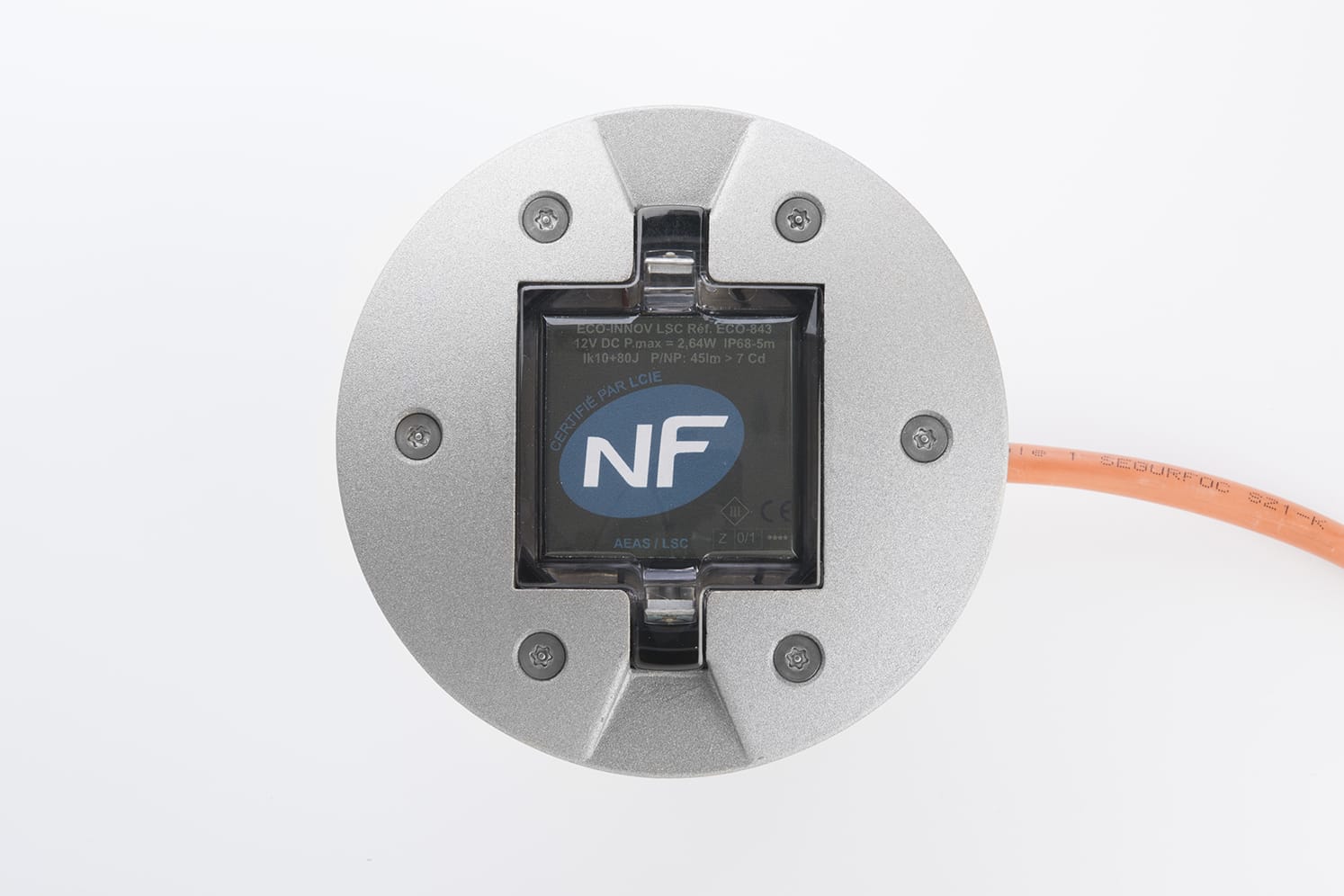

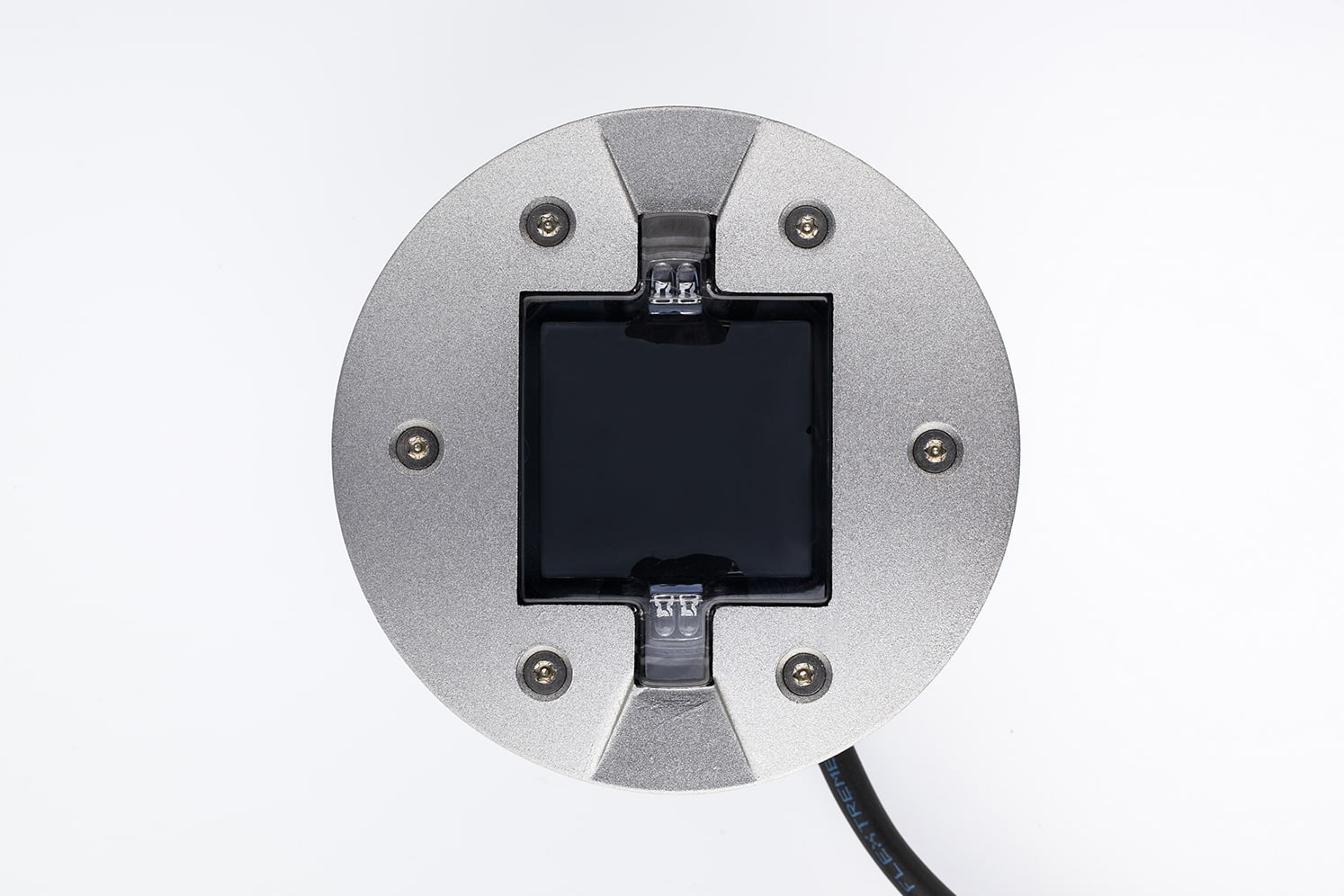

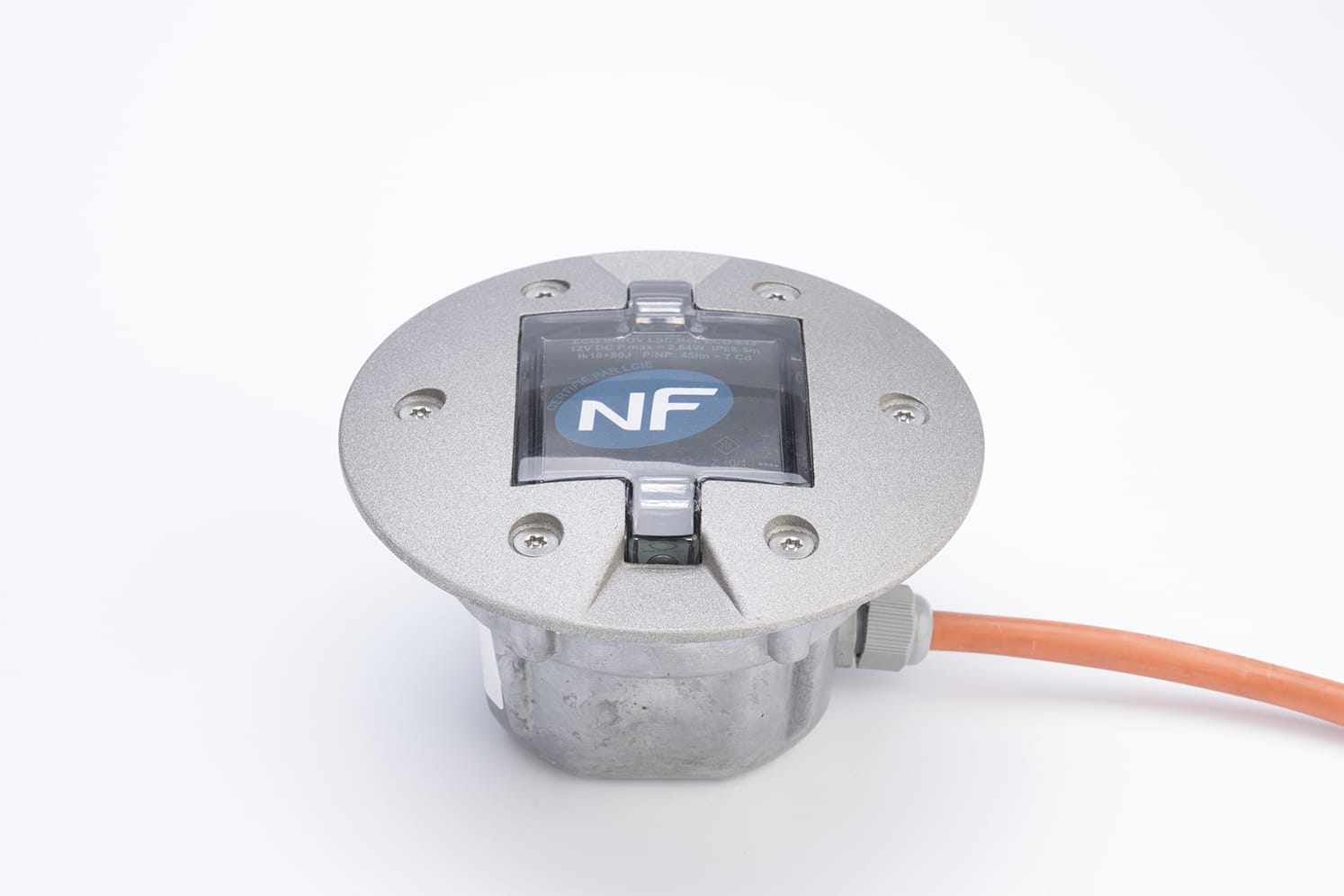

Embedded, hard-wired luminous stud
Low-consumption luminous beaconing solution, suitable for the pressure of pedestrians, cycles and light vehicles. Resembles a roadway nail for easy integration into urban and architectural settings. Easy maintenance via the cover.
Applications
Cycle paths, Eco-districts, Footpaths, Parks / Public squares, Pontoons / Footbridges
Resistance
Standards
LED Colors
Beaconing
2 LED, 4 LED, Constant, Blinking, Synchronized blinking, Sequential, Grazing
Customization
Aluminium cap, Anodised cap, Powder coated cap (RAL available), Coat of arms, Logo, Custom wiring
Recycling
Certifications
TECHNICAL CHARACTERISTICS
Dimensions and weight

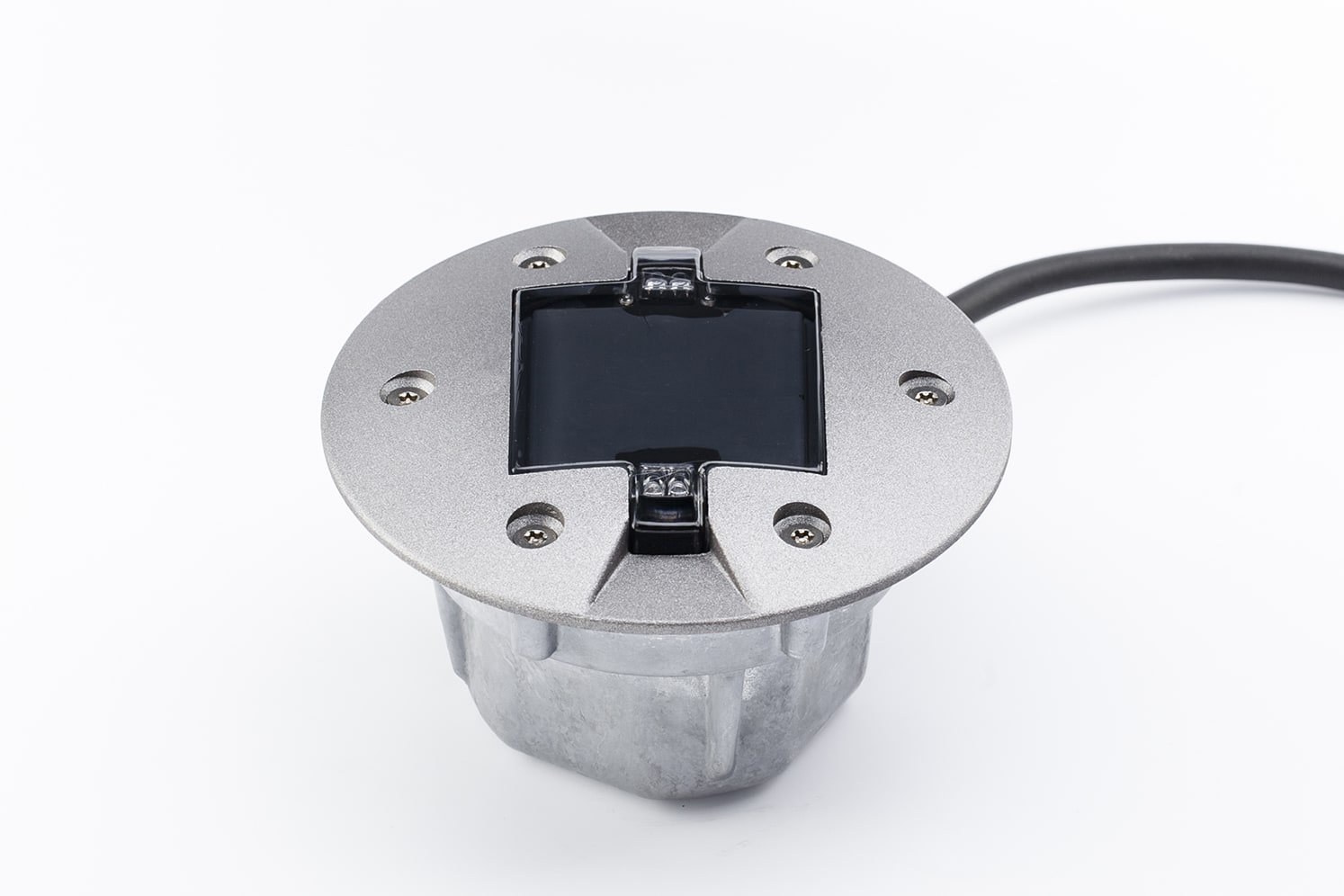

Upper diameter: 145 mm. Total height: 87 mm.
Height above roadway: 3 mm at each end / 15 mm in the centre.
Weight: approximately 1 kg.
Materials
Aluminium and Polycarbonate.
Recycling managed by ECOSYSTEM.
Power supply and consumption
12V dc or 24V dc / 0.24W to 0.96W.
Electricity class
III
Working temperature range
-30°C to +85°C.
Protection indices
IP 68 – 5 meters (watertightness).
IK 10+ 100 Joules (impact resistance).
LIGHTING CHARACTERISTICS
Unidirectional beaconing 2 LED or bidirectional 2×2 LED.
Constant, blinking or sequential mode.

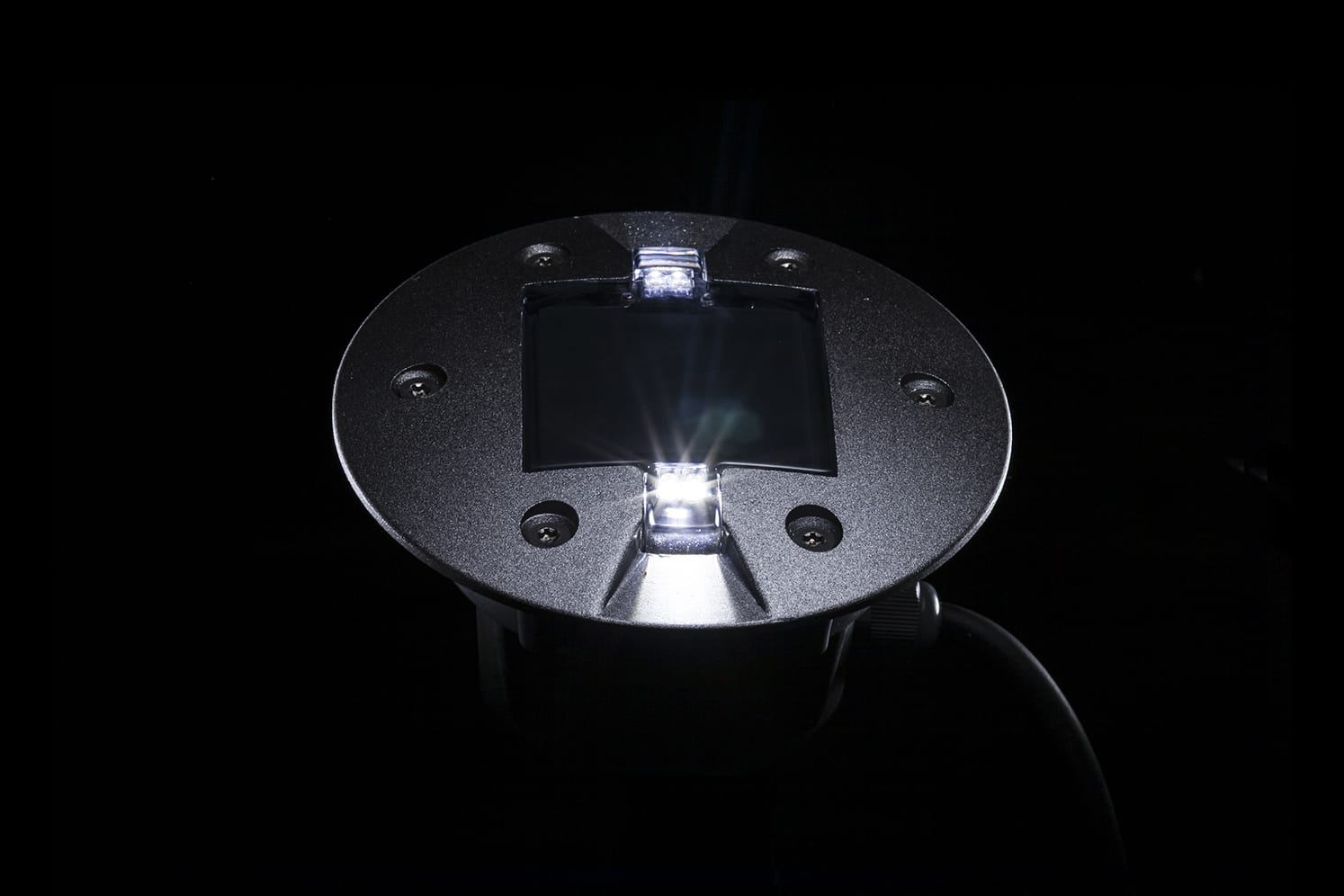

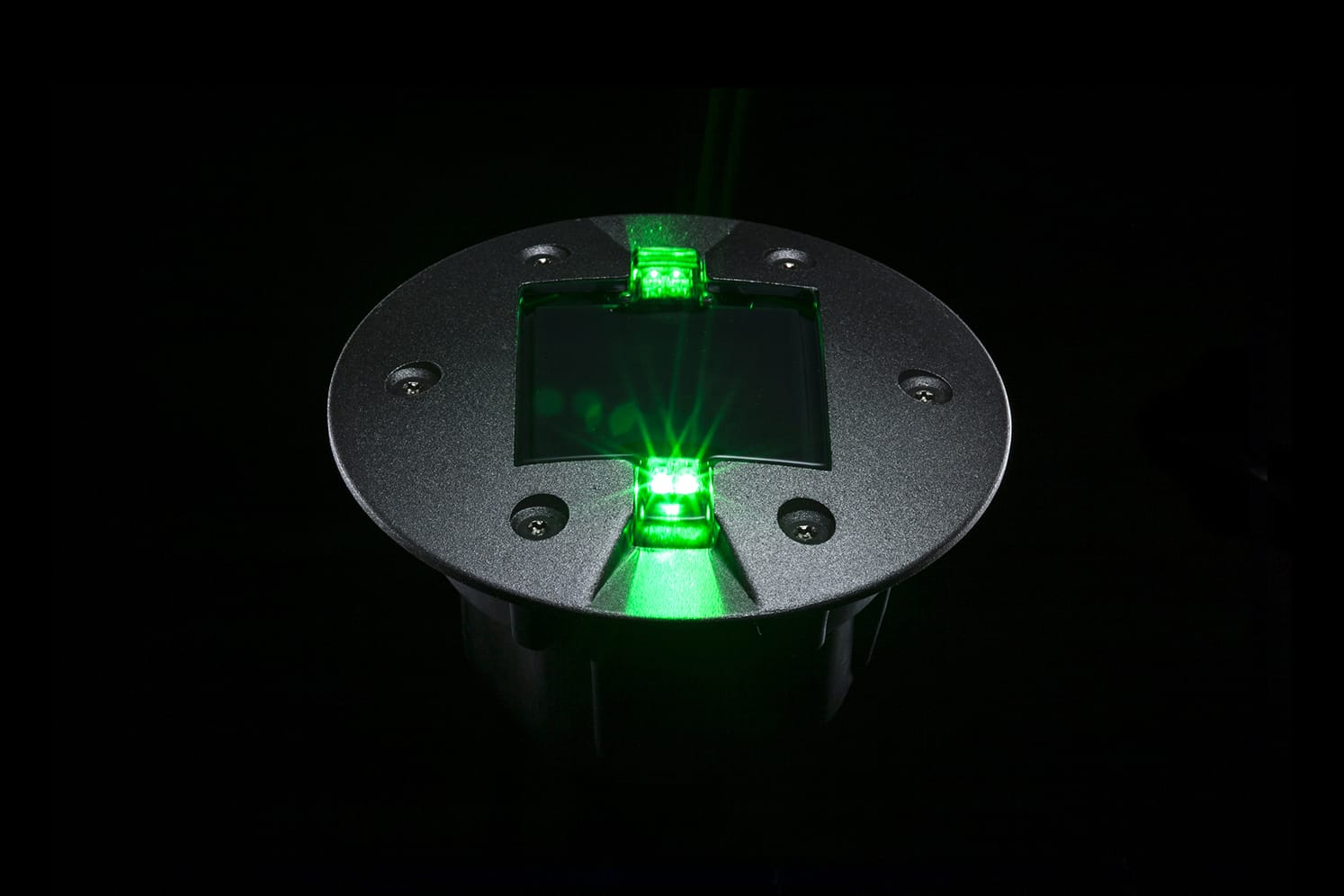

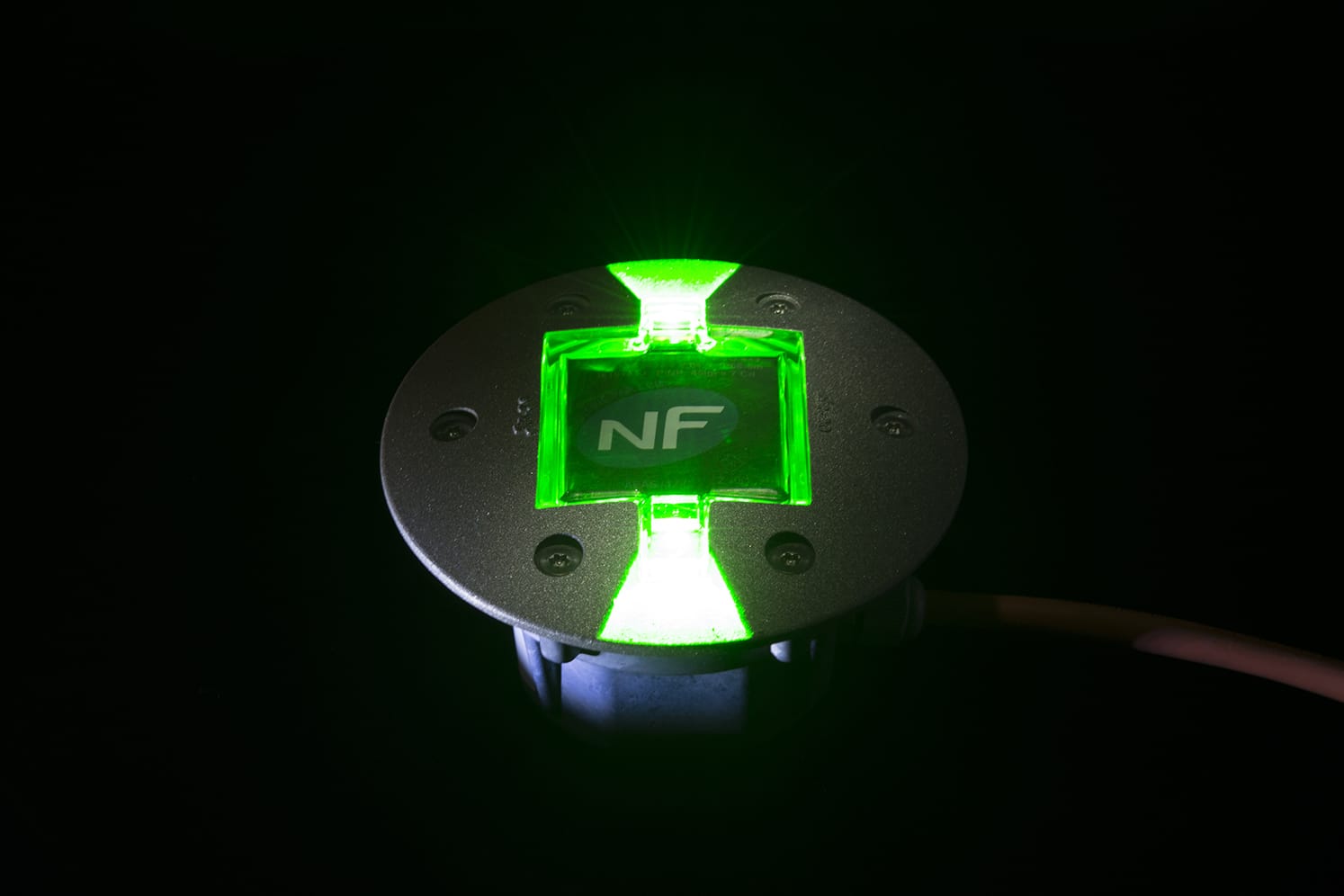

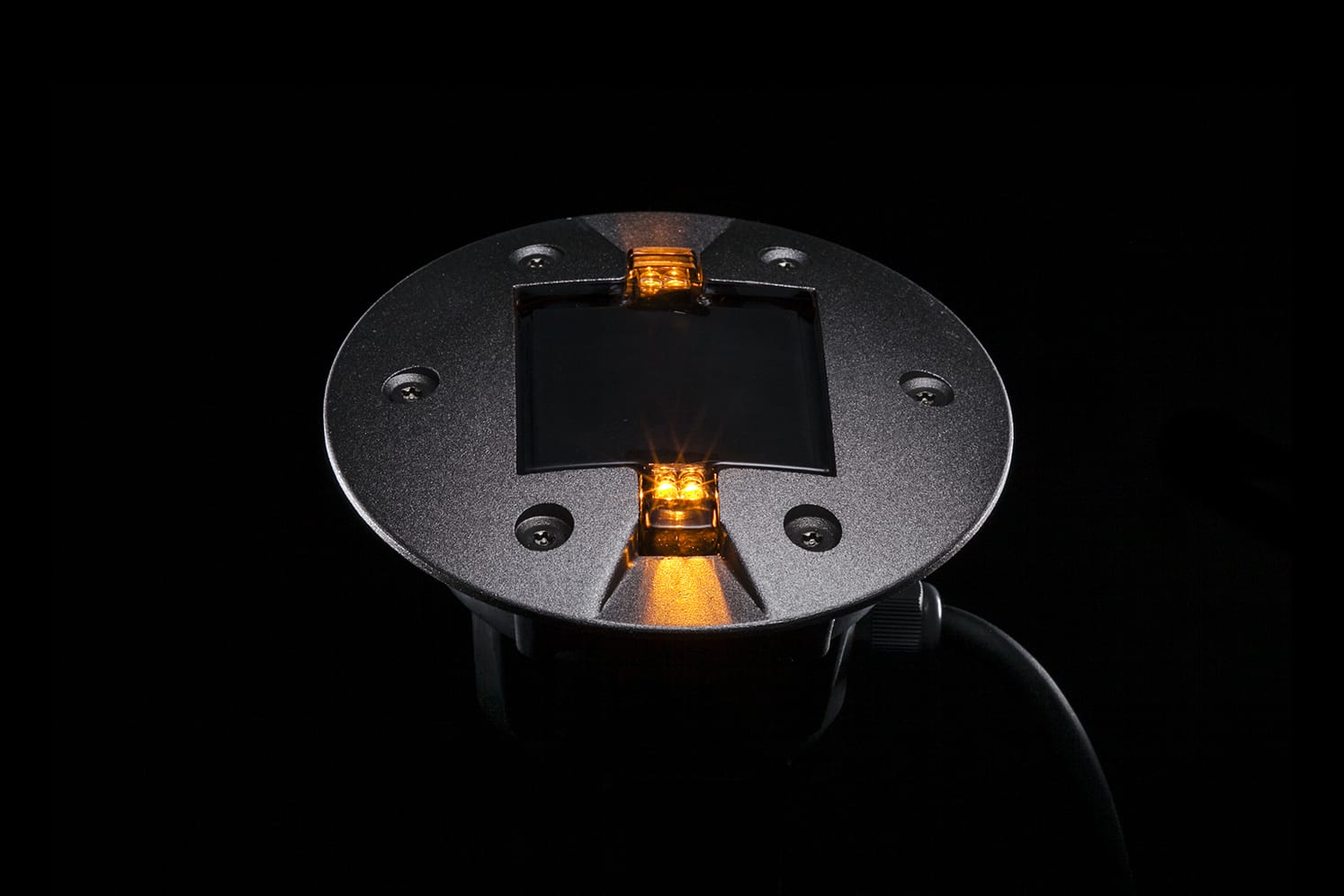

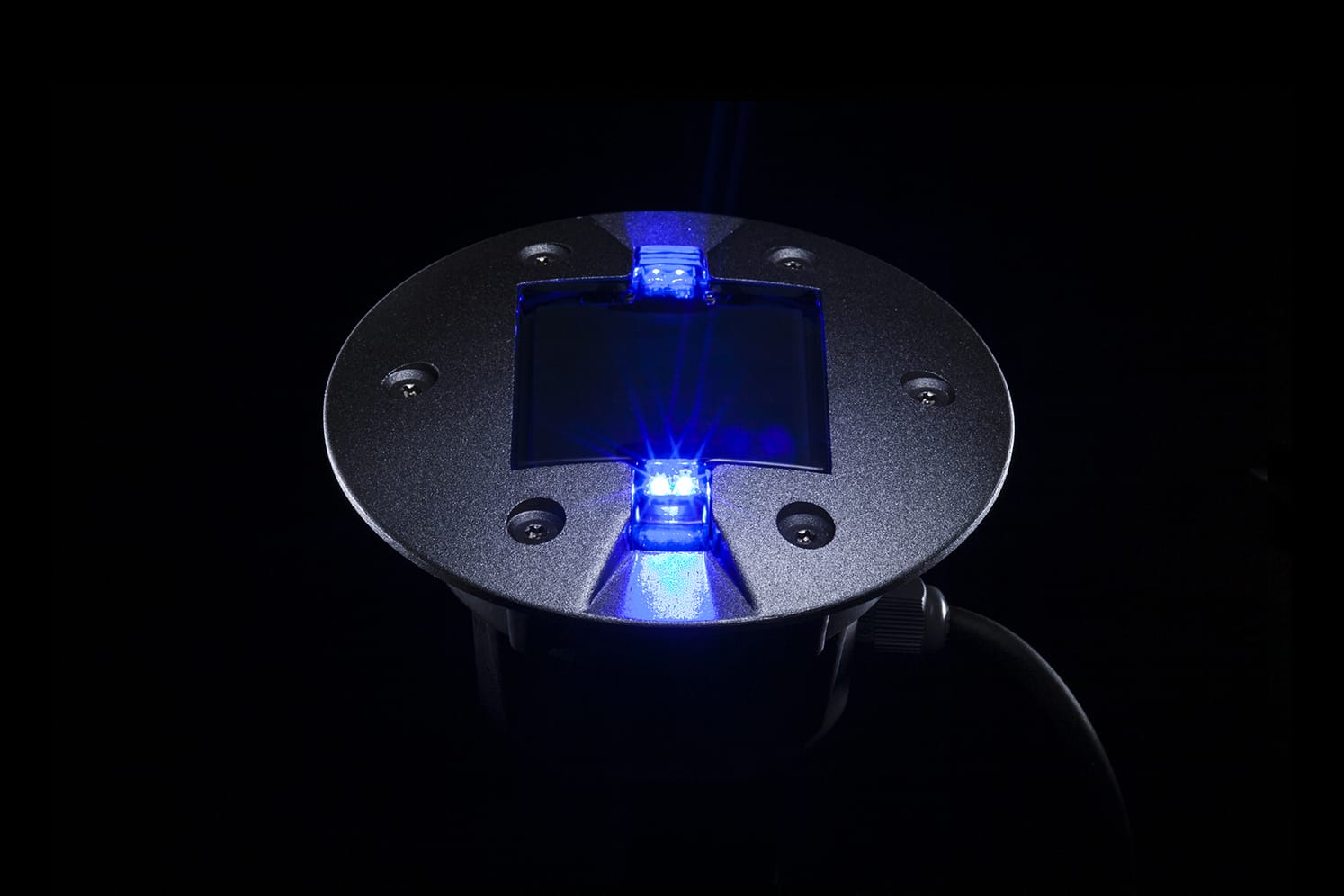

LED colours: white, blue, green, red, amber.
1 – Identify the stud locations.
2 – Drill a hole 130 to 135 mm in diameter and 80 mm deep.
3 – Using a disk cutter, cut a groove 25 mm wide and 70 mm deep in the roadway.
4 – Clean and dry the holes and groove in order to remove all traces of dust and moisture that would affect the adhesive’s performance (follow the manufacturer’s instructions).
5 – Pour suitable adhesive into the holes and insert the pre-wired studs. Use a mallet to make sure they are flush with the ground surface. Make sure the LEDs are facing the right way and are parallel to the ground. Immediately clean any residual adhesive with a clean, dry rag. We recommend using Sikadur 30 two-component epoxy resin.
6 – Leave a weight on the stud until the adhesive has set (see the manufacturer’s instructions for the necessary time).
IMPORTANT: Do not bend the cable where it leaves the stuffing box. Protect cables in a sheath. The guarantee may not apply if these instructions are not followed.
Lifespan and warranty
2-year warranty*
LED: 100,000 hours (> 10 years of round-the-clock operation).
* The warranty applies in the event of complete failure of the self-contained lighting system during normal usage. It covers replacement of the faulty article with an identical model delivered free of charge to destinations in metropolitan France, after the faulty article has been returned and analysed. Removal of the faulty article, installation of the new one and any mechanical damage are not covered by the warranty.
